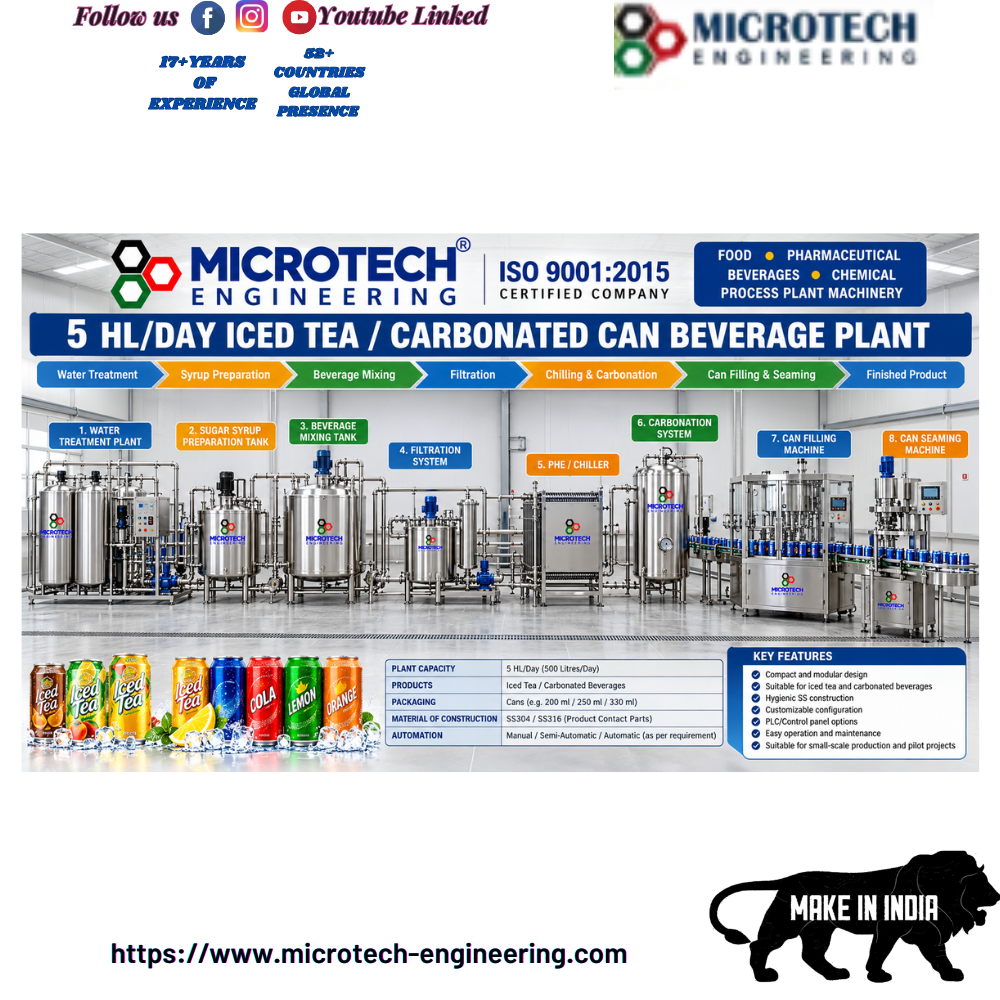

5 HL/DAY ICED TEA / CARBONATED CAN BEVERAGE PLANT

5 HL/DAY Iced Tea / Carbonated Can Beverage Plant

MICROTECH ENGINEERING offers a compact 5 HL/day Iced Tea / Carbonated Can Beverage Plant designed for small-scale and commercial beverage production. With a nominal production capacity of 500 litres per day, the plant can be configured for iced tea preparation, syrup blending, beverage chilling, carbonation (for carbonated products), and hygienic can filling and sealing.

The plant integrates essential processing equipment, including stainless steel mixing tanks, syrup preparation systems, filtration units, heat exchangers or chillers, carbonation equipment where required, and automatic or semi-automatic can filling and seaming machines. The system layout can be customized according to the beverage formulation, packaging requirements, and available utilities.

Key Features

• Nominal production capacity: 5 HL/day (500 litres/day).

• Suitable for iced tea and carbonated canned beverages, with appropriate product-specific configurations.

• Stainless steel product-contact equipment, with SS 304 or other suitable materials as specified.

• Mixing, blending, filtration, and temperature-control options.

• Optional carbonation system with CO dosing and pressure control.

• Can filling and seaming system for hygienic packaging.

• Compact layout with easy-to-operate controls.

• Customizable automation level and equipment configuration.

Main Machinery

1. Sugar Syrup Preparation Tank

2. Beverage Blending and Mixing Tank

3. Product Transfer Pump

4. Filtration System

5. Heat Exchanger / Chiller

6. Carbonation Unit with CO Supply for carbonated beverages

7. Beverage Holding Tank

8. Can Filling Machine

9. Can Seaming Machine

10. Can Rinsing System and Conveyor

11. Control Panel and Piping System

Applications

• Iced tea and flavored tea beverages

• Carbonated soft drinks

• Fruit-flavored carbonated beverages

• Ready-to-drink beverages

• Small-scale beverage startups and pilot production facilities

Working Process

Raw Water Preparation Syrup Preparation Beverage Blending Filtration Cooling Optional Carbonation Can Filling Can Seaming Finished Product Inspection

Note: Actual daily output depends on can size, operating hours, product type, filling speed, and changeover time. Iced tea and carbonated beverages may require different processing and filling arrangements; the final plant configuration should be selected accordingly.

Manufacturer: MICROTECH ENGINEERING Industry Segments: Food Pharmaceutical Beverages Chemical Process Plant Machinery
