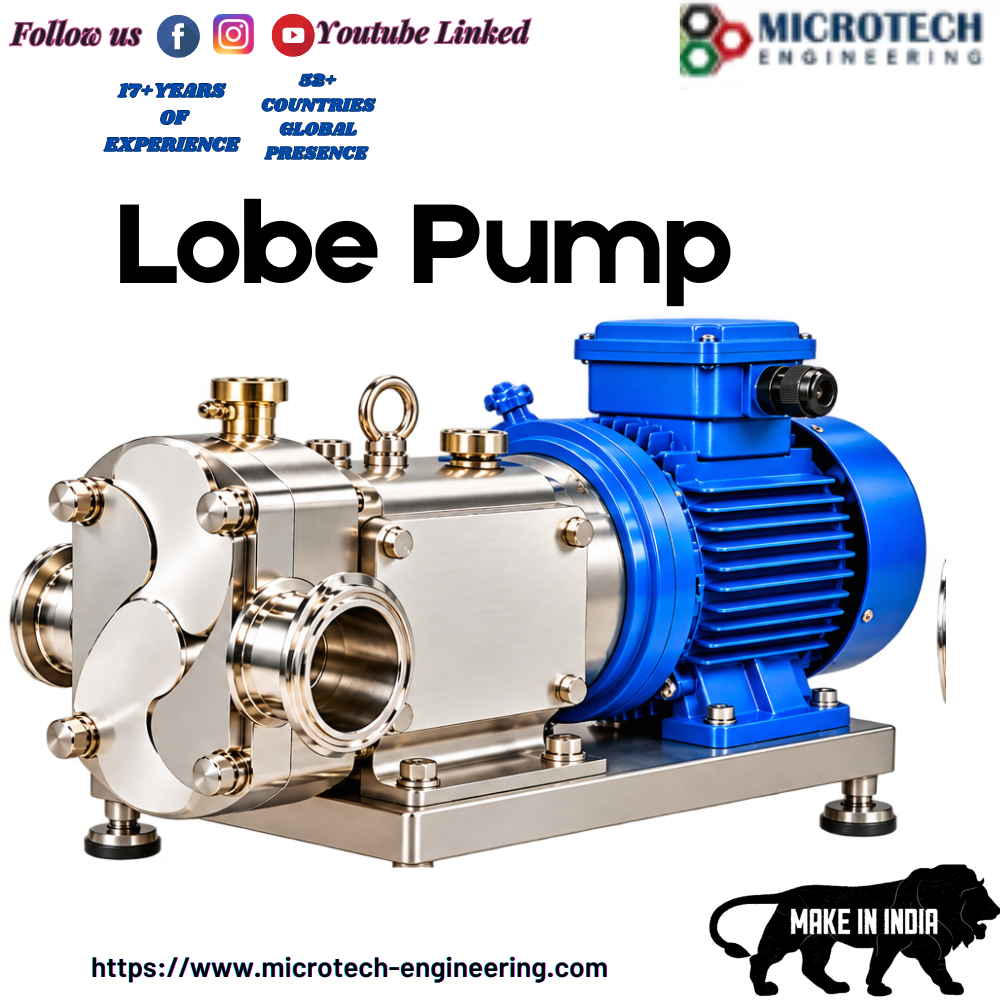

Lobe Pump

Name: Lobe Pump
Brand: MICROTECH ENGINEERING
Price: 75245 INR
Availability: InStock

Price 75245 INR/ Box

Get a Price/Quote

MOQ : 1 Box

Lobe Pump Specification

Features
Corrosion resistant, Easy to clean, Hygienic design, Low pulsation

Head Size
up to 120 m

Control System
Manual / Automatic

Working Temperature
-20C to 120C

Theory
Rotary Lobe Pump

Voltage
220V / 380V / Customized

Frequency
50Hz / 60Hz

Speed
10 to 1450 RPM

Mounting Type
Baseplate / Skid

Max Suction
8m (self-priming)

Flow Rate
up to 120 m/h

Inlet/Outlet
Threaded / Flanged / Clamp

Noise Level
< 75 dB

Caliber
DN25 DN100

Discharge Pressure
max 12 bar

Material
Stainless Steel 304/316, Cast Iron, Alloy

Structure
Horizontal / Vertical

Power
0.75 kW to 22 kW

Standard
CE, ISO

Fuel Type
Electric

Pressure
up to 1.2 MPa

Usage
Industrial, Food, Chemical, Pharmaceutical, Beverage, Cosmetic

Application
Transfer of viscous liquids, Sludge, Syrup, Paste, etc.

Suction Type
Positive displacement

Seals Type
Mechanical Seal / Lip Seal / Gland Packing

Priming
Self-priming

Pump Type
Rotary Lobe Pump

Capacity
from 0.5 to 120 m/h

Port Orientation
Horizontal / Vertical

Surface Finish
Mirror Polished (Ra 0.6 m)

Flow Direction
Bi-directional

Lobe Material
Stainless Steel, Rubber Coated, PTFE Coated

Connection Type
DIN, SMS, Tri-clamp, RJT, Flange

Safety Features
Overload Protection, Dry Running Protection

Weight
Varies by model (typically 30 to 350 kg)

Protection Class
IP55 / IP65 available

Clean-in-Place
CIP/SIP compatible

Viscosity Handling
up to 1,000,000 cps

Lubrication
Oil bath / Grease

Drive Type
Electric motor, Gearbox, VFD compatible

Replaceable Parts
Lobes, Seals, Gaskets, Wear plates

Lobe Pump Trade Information

Minimum Order Quantity
1 Box

FOB Port
yes

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Letter of Credit (L/C), Paypal, Western Union, Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
1000 Boxes Per Year

Delivery Time
1 Week

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Packaging Details
PACKING, WOODEN BOX

Main Domestic Market
All India

Certifications
ISO 9001 : 2015

About Lobe Pump

Lobe Pump Description

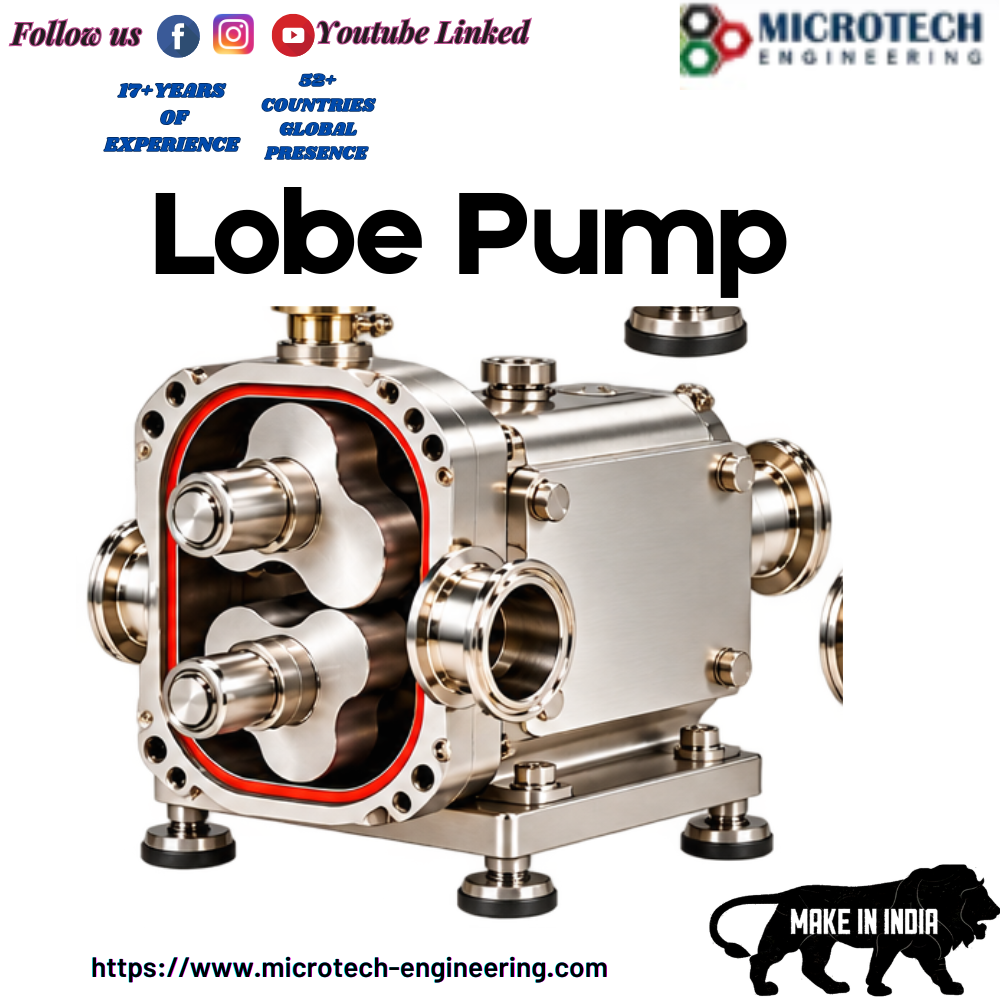

A Lobe Pump is a positive displacement pump designed for the smooth and efficient transfer of viscous liquids, semi-solid products, and shear-sensitive materials. It operates using two rotating lobes that trap and move liquid from the suction side to the discharge side, providing a controlled and consistent flow.

Lobe pumps are widely used in food processing, pharmaceutical, beverage, cosmetic, and chemical industries due to their hygienic design, gentle product handling, and ability to transfer high-viscosity fluids. Depending on the design and application, they can handle products containing soft solids and suspended particles.

Key Features

Positive displacement pumping mechanism for consistent flow.
Suitable for high-viscosity liquids and thick products.
Gentle pumping action for shear-sensitive materials.
Stainless steel construction available for hygienic applications.
Easy cleaning and maintenance, depending on the design.
Reversible flow capability in suitable configurations.
Available with different capacities, pressure ratings, and seal arrangements.

Applications

Food Industry: Mayonnaise, ketchup, honey, chocolate, creams, and edible oils.
Pharmaceutical Industry: Syrups, gels, creams, and viscous formulations.
Cosmetic Industry: Shampoo, lotion, liquid soap, and toothpaste.
Beverage Industry: Fruit pulp, concentrates, and thick beverage mixtures.
Chemical Industry: Resins, polymers, adhesives, and viscous chemical liquids.

Technical Specifications

Parameter	Description
Product Name	Rotary Lobe Pump
Pump Type	Positive Displacement
Pumping Mechanism	Twin Rotating Lobes
Material of Construction	SS 304 / SS 316 / Cast Iron, as required
Capacity	Model-dependent
Operating Pressure	Model-dependent
Motor Power	As per flow and pressure requirements
Speed	As per application and product viscosity
Sealing Arrangement	Mechanical Seal / Application-specific
Installation	Horizontal or customized mounting
Applications	Food, Pharmaceutical, Cosmetic and Chemical Industries
