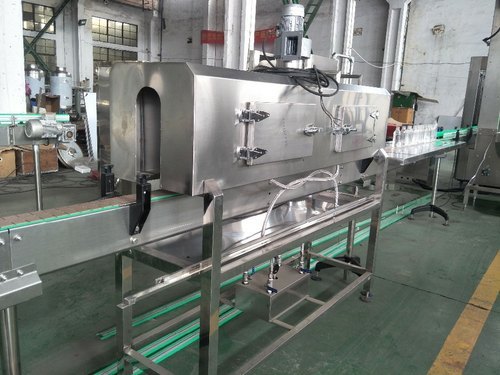

Steam Shrink Tunnel Machine
Steam Shrink Tunnel Machine
Steam Shrink Tunnel Machine
Steam Shrink Tunnel Machine

Steam Shrink Tunnel Machine

Steam Shrink Tunnel Machine Specification

  • Voltage
  • 220-380 V
  • Plastic Processed
  • PVC, PET, OPS Shrink Sleeves
  • Machine Type
  • Steam Shrink Tunnel
  • Noise Level
  • < 70 dB
  • Power Rating
  • 12 kW Max
  • Features
  • Stainless steel body, Adjustable steam vents, High shrink efficiency
  • Operating Temperature
  • 0°C - 45°C
  • Frequency
  • 50/60 Hz
  • Control System
  • Digital PLC Control
  • Production Capacity
  • Up to 150 bottles/min
  • Frame Type
  • Stainless Steel Modular Frame
  • Lubricating System
  • Manual Grease Points
  • Accuracy
  • ±1 mm
  • Drive
  • Conveyor Belt Drive
  • Motor Power
  • 0.75 kW
  • Cooling System
  • Integrated Cooling Fan
  • Model No
  • SST-2500
  • Connectivity Options
  • Standard electrical connection, PLC interface
  • Product Type
  • Shrink Tunnel Machine
  • Technology
  • Steam Heating
  • Power Source
  • Electric & Steam
  • Operating Type
  • Automatic
  • Power
  • 8-12 kW
  • Pressure
  • 0.1-0.2 MPa
  • Surface Treatment
  • Powder Coated / SS Finish
  • Dimension (L*W*H)
  • 2500 x 500 x 1700 mm
  • Weight (kg)
  • Approx. 220 kg
  • Color
  • Silver / Grey
  • Usage & Applications
  • Shrink sleeve labeling, PET bottles, Containers, Jars
  • Energy Saving Mode
  • Yes
  • Max Bottle Throughput
  • 9000 bottles/hour
  • Frame Material
  • SUS 304 stainless steel
  • Changeover Time
  • < 10 minutes
  • Conveyor Speed
  • 0-30 m/min Adjustable
  • Display Type
  • Touch Screen HMI
  • Steam Pressure Requirement
  • 0.1-0.4 Mpa
  • Length of Tunnel Chamber
  • 1200 mm
  • Transport System
  • Stainless steel slat conveyor
  • Working Speed
  • Adjustable up to 30 m/min
  • Mounting
  • Floor Mounted
  • Bottle Height Range
  • 50 mm to 320 mm
  • Sleeve Thickness Range
  • 30-50 microns
  • Steam Consumption
  • 18-26 kg/h
  • Emergency Stop
  • Yes
  • Number of Steam Zones
  • 2 to 3 adjustable zones
  • Maximum Steam Temperature
  • 120°C
  • Ingress Protection
  • IP54
  • Applicable Product Diameter
  • 28 mm to 125 mm


Steam Shrink Tunnel Machine Trade Information

  • FOB Port
  • yes
  • Payment Terms
  • Cash on Delivery (COD), Letter of Credit (L/C), Telegraphic Transfer (T/T), Paypal, Western Union, Cash Against Delivery (CAD), Cash in Advance (CID), Cheque, Cash Advance (CA)
  • Supply Ability
  • 100 Per Year
  • Delivery Time
  • 3 Week
  • Sample Policy
  • Free samples available with shipping and taxes paid by the buyer
  • Packaging Details
  • PACKING, WOODEN BOX
  • Main Export Market(s)
  • Australia, South America, Western Europe, Middle East, Central America, Asia, Eastern Europe, North America, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001 : 2015


About Steam Shrink Tunnel Machine

We are a trusted manufacturer and supplier of top grade Pumps and Process Control Instruments. With a premier aim to cater to the varied demands and requirements of our client in an efficient manner, we offer a comprehensive array of products comprising Transfer Pump, Polypropylene Pump, Stainless Steel Self Priming Pump, Filter Pump, Magnetic Drive Pump, Dosing Pump and Process Control Instruments. All these products are developed in compliance with the international quality standards.

Our firm has crossed milestones of success in the industry by offering quality products that are known for an optimal functionality and long service life. The professionals employed by our firm use the latest technological advancements to fabricate all our products. Apart from this, we provide prompt after sales support, installation training, onsite support and operational training. Further, we are backed by a wide distribution network that assists us to provide prompt deliveries of consignments to our clients.


Flexible and Adjustable Performance

This steam shrink tunnel offers adjustable conveyor speeds, steam consumption, and customizable steam zones to ensure optimal shrinking for a wide range of bottle shapes and sleeve materials. Changeover time of under 10 minutes enables quick adaptation to new product formats, maximizing productivity.


Robust, Hygienic Stainless Steel Construction

Crafted from SUS 304 stainless steel and featuring a modular frame, this machine offers superior corrosion resistance and hygiene. It's designed for demanding industrial environments, with IP54 protection and a powder coated or stainless steel finish for longevity and ease of maintenance.


Advanced Automation and User Interface

Operators benefit from the machine's automatic operation, digital PLC control, and intuitive touch screen HMI. These controls streamline adjustments for process parameters and support energy saving mode, integrated cooling, and emergency stop for safety and efficient workflow.

FAQ's of Steam Shrink Tunnel Machine:


Q: How does the Steam Shrink Tunnel Machine work to sleeve bottles?

A: The machine uses adjustable steam zones that generate heat to shrink sleeve labels tightly onto bottles, jars, or containers as they pass through the tunnel on a stainless steel slat conveyor. This ensures a uniform and secure fit for a variety of bottle sizes and shapes.

Q: What types of products and sleeve materials are compatible with this machine?

A: The SST-2500 model is suitable for applying shrink sleeves made from PVC, PET, or OPS onto bottles, containers, and jars, with diameters ranging from 28 mm to 125 mm and heights from 50 mm to 320 mm. Sleeve thickness of 30-50 microns is supported.

Q: When is a changeover needed and how quickly can it be completed?

A: A changeover is required whenever you switch product sizes or sleeve materials. The machine is designed for efficient changeovers, taking less than 10 minutes, which minimizes downtime during production runs.

Q: Where can this steam shrink tunnel machine be installed?

A: It is a floor-mounted unit suitable for installation in beverage, food, pharmaceutical, and packaging industries. Its IP54 ingress protection and durable stainless steel frame make it ideal for use in industrial production facilities.

Q: What is the process for adjusting the machine for different bottle sizes or shrink sleeve types?

A: Adjustments are easily made through the touch screen HMI interface and by configuring the position of steam zones and conveyor speed. The machine's modular design enables quick adaptation to varying bottle dimensions and sleeve materials without extensive reconfiguration.

Q: How does using this machine benefit production efficiency and product quality?

A: The integrated conveyor system, automatic operation, precise digital PLC controls, and high-speed throughput (up to 9000 bottles/hour) ensure consistent sleeve application, reduce manual labor, and increase overall line efficiency. Energy saving mode and advanced safety features further optimize the process.
