Price 125256 INR/ Unit

MOQ : 1 Unit

Jam processing plant Specification

  • Automation Grade
  • Fully Automatic
  • Frequency
  • 50/60 Hz
  • Accessories
  • Fruit Washer, Pulper, Concentrator, Mixing Tank, Pouch Filling Machine, Capping & Packaging units
  • Motor Power
  • Custom; typically 3-15 HP depending on plant size
  • Model No
  • JAM-PLT-SERIES
  • Driven Type
  • Electric Motor Driven
  • Installation Guideline
  • Onsite installation support provided
  • Usage & Applications
  • Used for processing of various fruit jams (mango, strawberry, mixed fruit, etc.) in food industry
  • Efficiency (%)
  • 85-92%
  • Temperature Range
  • Up to 120°C
  • Production Capacity
  • Up to 2 Tons/Hour
  • Speed
  • Variable via VFD
  • Type
  • Jam Processing Plant
  • Material
  • Stainless Steel (SS 304/316)
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Control System
  • PLC Controlled
  • Drive Type
  • Electric
  • Voltage
  • 380V / 415V, 50Hz
  • Power
  • 15-80 kW (Depending on capacity)
  • Weight (kg)
  • 4500-7000 kg
  • Dimension (L*W*H)
  • Customized as per requirement
  • Color
  • Silver / Metallic
  • Capacity
  • 500 kg/hr to 2000 kg/hr
  • Features
  • Corrosion resistant, High efficiency, Easy cleaning, Hygienic design, Compact structure
  • Power Consumption
  • Depends on model size and options
  • Machine Type
  • Industrial Food Processing Machinery
  • Surface Finish
  • Mirror Polished
  • Processing Stages Included
  • Washing, Pulping, Concentration, Cooking, Mixing, Filling, Capping, Labelling
  • Max Viscosity Handled
  • up to 10,000 cP
  • Steam Requirement
  • 500-2500 kg/hr (if steam heating is used)
  • Cleaning System
  • CIP (Clean-in-Place) compatible
  • Power Supply Phase
  • Three Phase
  • Design Flexibility
  • Customizable layout as per factory space
  • Heat Exchanger Type
  • Plate or Tubular, as per request
  • Hygiene Compliance
  • Meets international food safety standards (HACCP, GMP)
  • Transportability
  • Modular (skid mounted possible)
  • Water Consumption
  • 0.5 - 2.5 m³/hr based on plant size
  • Material Contact Parts
  • All contact parts in SS 304 / SS 316 as required
  • Noise Level
  • < 75 dB(A)
  • After Sales Support
  • Spare parts, Maintenance & Training available


Jam processing plant Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Supply Ability
  • 1 Unit Per Day
  • Delivery Time
  • 1 Months
  • Sample Available
  • Yes
  • Packaging Details
  • WOODEN BOX
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 MSME


About Jam processing plant

Jam processing plant DESCRIPTION

Product Description

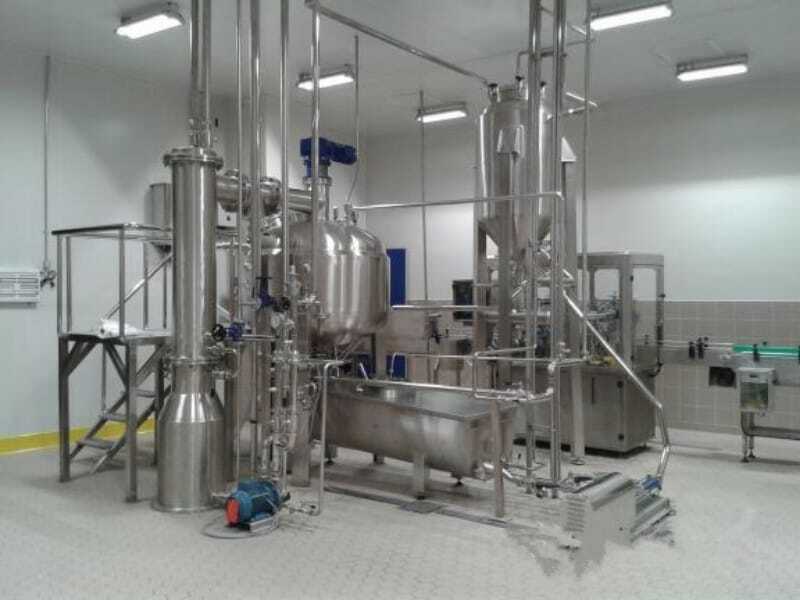

The Jam Processing Plant manufactured by MICROTECH ENGINEERING is designed for the efficient processing of fresh fruits into high-quality jam. The plant integrates fruit washing, sorting, pulping, mixing, cooking, concentration, and filling operations to produce jam with a consistent texture, flavour, colour, and quality.

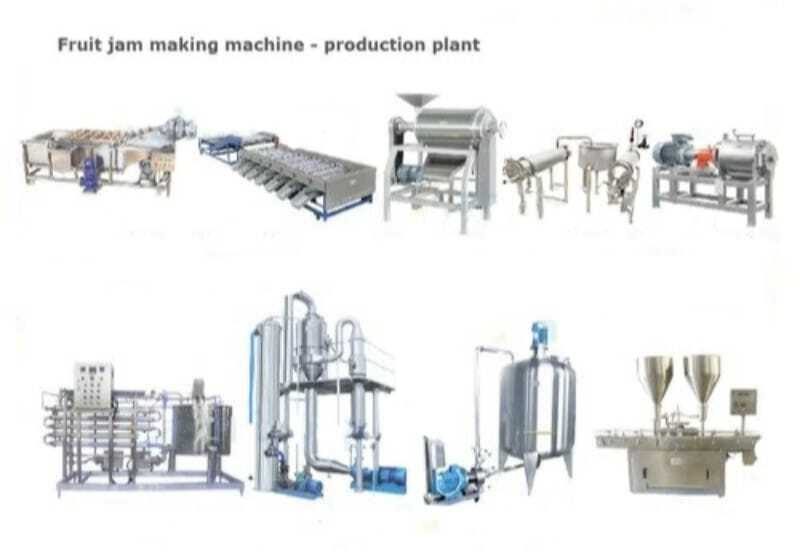

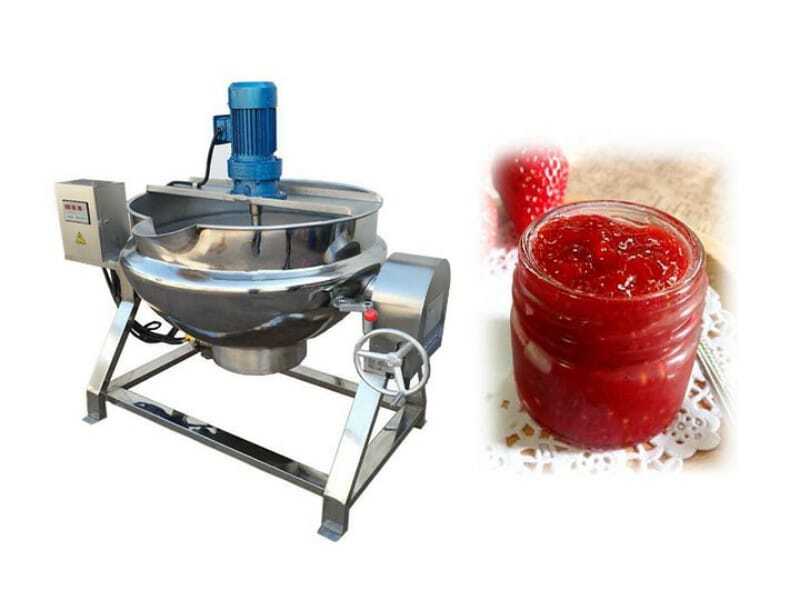

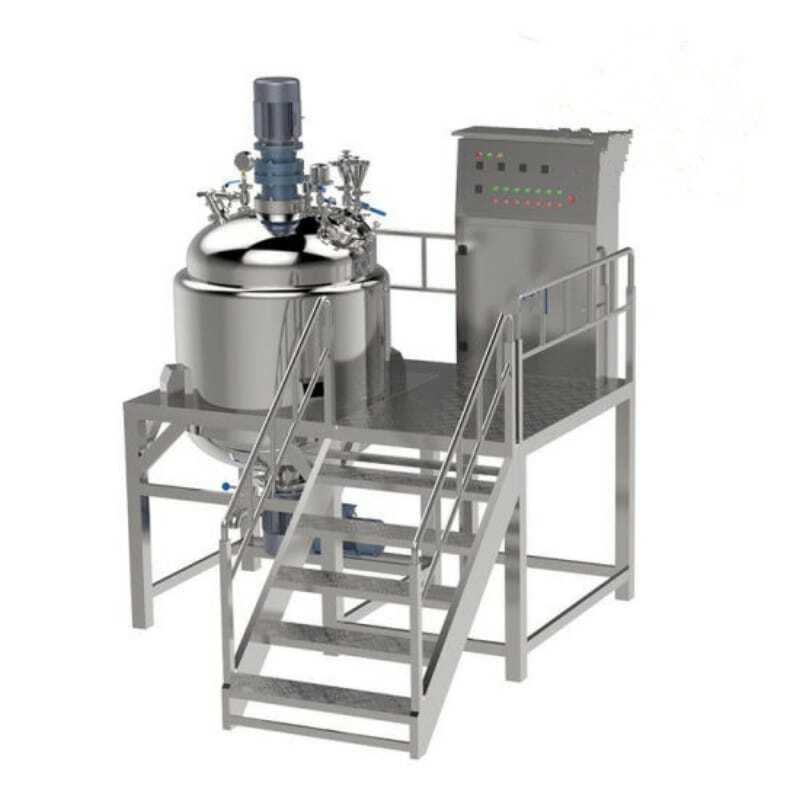

The system can be equipped with fruit washing conveyors, pulpers, stainless steel cooking kettles, mixing tanks, transfer pumps, heat exchangers, storage tanks, and automatic or semi-automatic filling machines. The complete plant can be customized according to production capacity, fruit type, and processing requirements.

Key Features

  • Efficient fruit processing and pulp preparation.

  • Uniform mixing of fruit pulp, sugar, and other ingredients.

  • Controlled heating and concentration for the desired consistency.

  • Hygienic stainless steel construction.

  • Integrated pumping and product transfer system.

  • Easy cleaning and maintenance.

  • Automatic and semi-automatic operation options.

  • Customizable production capacity.

Applications

  • Strawberry jam production.

  • Mango jam manufacturing.

  • Mixed fruit jam processing.

  • Pineapple and apple jam production.

  • Fruit preserves and related products.

Customization Options: Production capacity, vessel size, heating system, material of construction (SS 304/SS 316), automation level, and filling system can be customized according to customer requirements.

MICROTECH ENGINEERING ISO 9001:2015 Certified Company Food Pharmaceutical Beverages Chemical Process Plant Machinery
