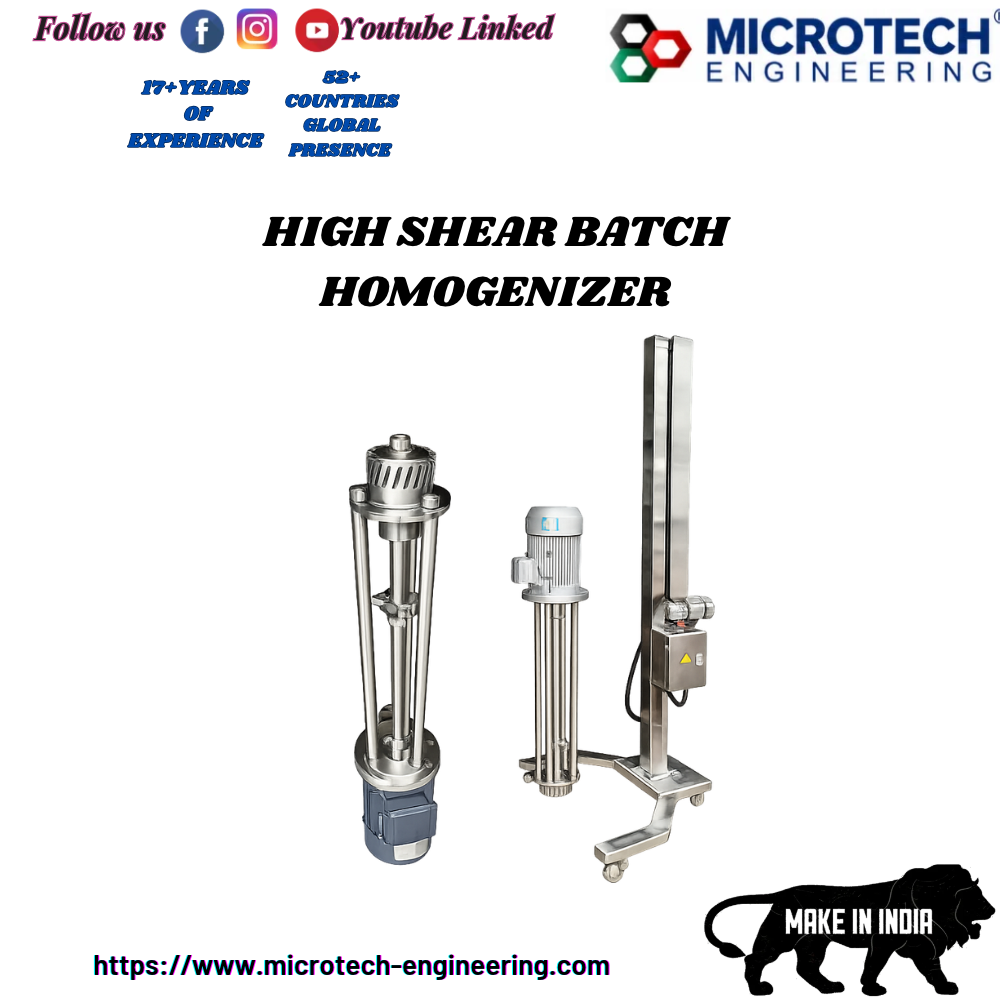

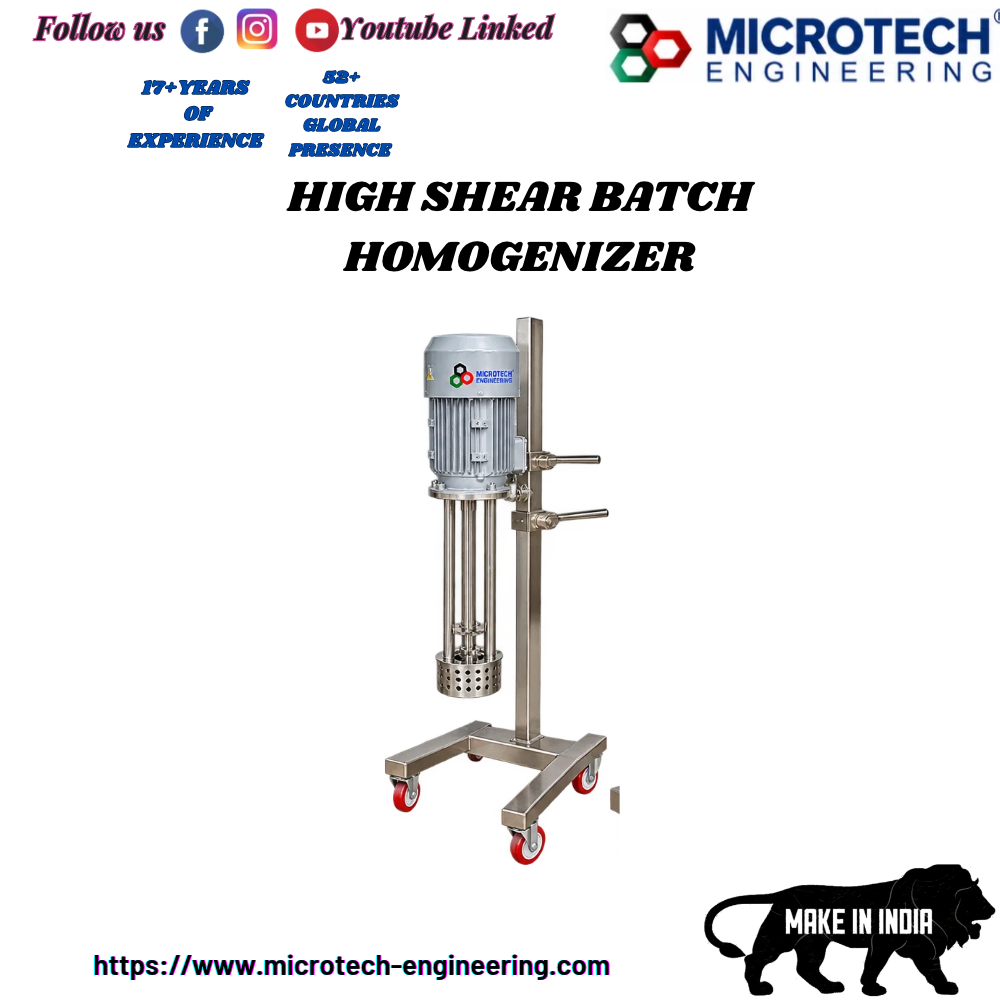

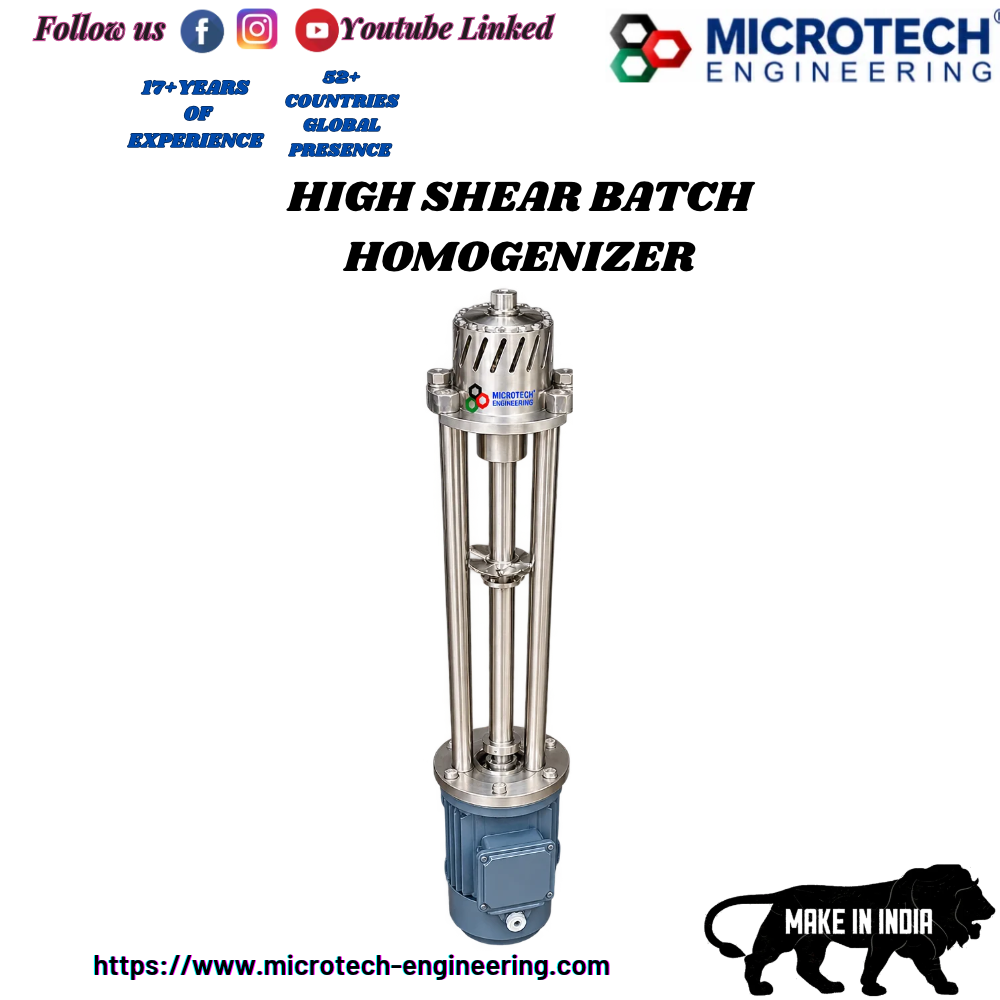

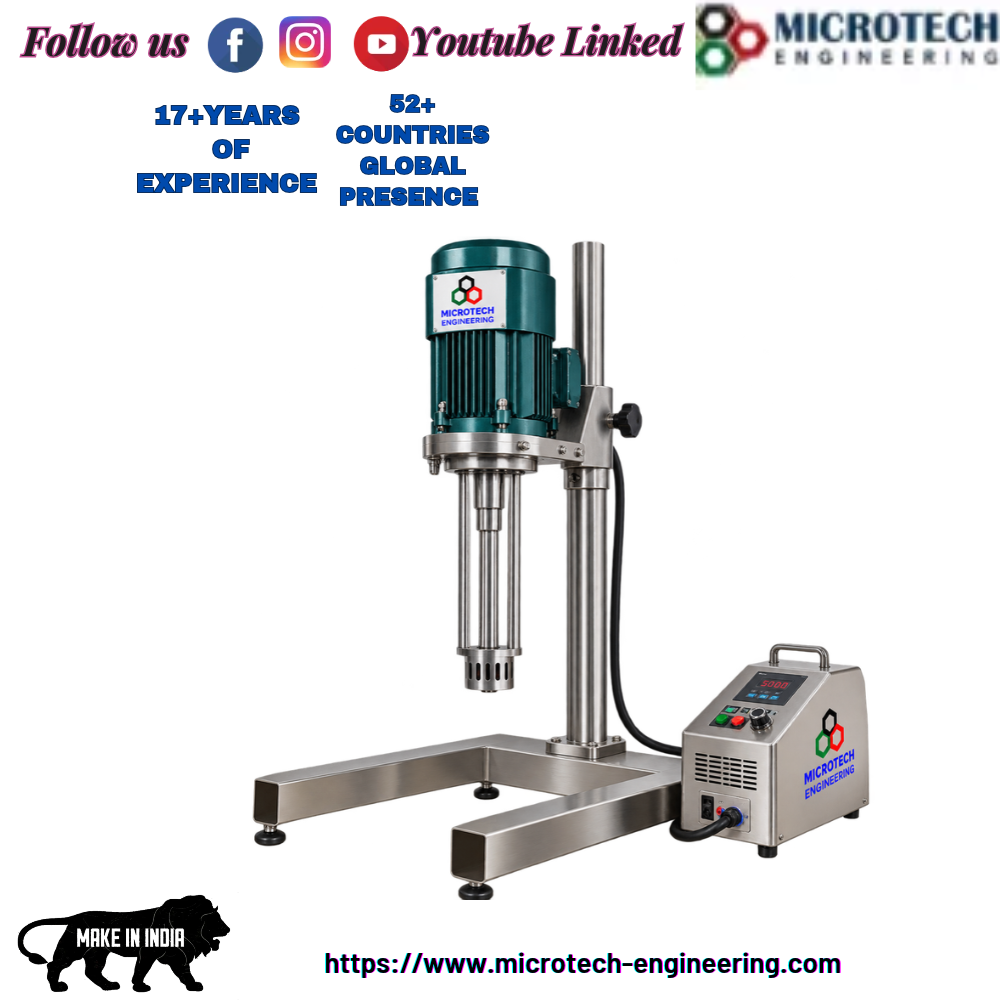

About HIGH SHEAR BATCH HOMOGENIZER

High Shear Batch Homogenizer Description

The High Shear Batch Homogenizer is a high-performance mixing and emulsification machine designed to produce uniform, smooth, and stable mixtures by combining high-speed rotation with intense shear forces. It is widely used in pharmaceutical, cosmetic, chemical, food processing, and personal care industries for the preparation of emulsions, suspensions, creams, gels, lotions, and other products requiring fine dispersion and consistent texture.

The machine operates using a high-speed rotor-stator assembly that generates strong mechanical shear within the liquid. The material is drawn into the homogenizing head, where it undergoes intensive mixing, particle size reduction, and dispersion before being circulated back into the batch. This process helps break down agglomerates, distribute ingredients evenly, and improve the uniformity and stability of the final product. Depending on the formulation and process conditions, it can also help reduce mixing time and improve product consistency.

The High Shear Batch Homogenizer is generally equipped with a high-speed electric motor, precision-engineered rotor-stator assembly, stainless-steel shaft, and a robust mounting arrangement. It can be installed directly on a processing tank or supplied with a suitable lifting mechanism for convenient positioning and operation. Product-contact parts can be manufactured in SS304 or SS316 stainless steel, depending on the application and hygiene requirements.

Designed for flexible batch processing, the homogenizer can be used independently or integrated with mixing tanks, heating and cooling systems, scrapers, and other processing equipment. Optional variable-frequency drive (VFD) control allows adjustment of rotor speed to suit different formulations and processing requirements. The machine is suitable for both small-scale formulation development and industrial production, subject to the selected model and batch capacity.

Key Features

• High-speed rotor-stator technology for intensive shear mixing.

• Efficient emulsification and dispersion of compatible ingredients.

• Helps achieve smooth texture and uniform product consistency.

• Suitable for creams, gels, lotions, suspensions, and emulsions.

• SS304 and SS316 stainless-steel construction options.

• Available with tank-mounted or lifting-type arrangements.

• Optional VFD for adjustable operating speed.

• Reduced mixing time for suitable formulations.

• Easy integration with batch processing tanks.

• Customizable motor power, rotor design, and processing capacity.

Applications

• Pharmaceutical creams, ointments, and gels

• Cosmetics, lotions, and skincare products

• Shampoo and liquid soap manufacturing

• Food emulsions, sauces, and dressings

• Mayonnaise and other suitable food formulations

• Chemical emulsions and dispersions

• Paints, coatings, and pigment dispersion

• Personal care and home-care products

Main Components

1. High-Speed Electric Motor

2. Rotor-Stator Homogenizing Head

3. Stainless-Steel Shaft Assembly

4. Mounting Stand or Lifting Mechanism

5. Variable-Frequency Drive (Optional)

6. Electrical Control Panel

7. Processing Tank Interface and Safety Accessories

MICROTECH ENGINEERING offers High Shear Batch Homogenizer solutions tailored to the required batch capacity, product viscosity, formulation characteristics, motor power, and desired mixing performance.
