AUTOMATIC BACKWASH FILTER HOUSING

Get a Price/Quote

AUTOMATIC BACKWASH FILTER HOUSING Specification

Shape
Cylindrical

Filter Rating
10-100 micron

Filter Media
Wedge Wire Screen, Multi-Layer Mesh Screen

Inlet Diameter
50 mm to 300 mm

Sealing
EPDM, Viton, NBR O-Ring

Pore Size
10-100 micron

Outlet Diameter
50 mm to 300 mm

Pressure
Up to 10 Bar

Product Type
Automatic Backwash Filter Housing

Material
Stainless Steel 304/316, Mild Steel with Epoxy Coating

Type
Self-Cleaning Backwash Filter

Cartridge Style
Automatic Backwash

Diameter
200 mm to 900 mm

Efficiency
Up to 99%

Application
Industrial Water Filtration, Process Filtration, Wastewater Treatment

Surface Finish
Mirror Polish/External Epoxy Paint

Operation
Fully Automatic/PLC Controlled

Cleaning Mechanism
Automatic Motorized/Programmable Backwash

End Connections
Flanged/Threaded

Maximum Solid Load
Up to 200 ppm

Maintenance
Low, Tool-Free Access

Temperature Range
5°C to 90°C

Mounting
Vertical Floor Mounted

Design Compliance
ASME, CE

Flow Capacity
10 m³/hr to 300 m³/hr

AUTOMATIC BACKWASH FILTER HOUSING Trade Information

FOB Port
yes

Payment Terms
Cash on Delivery (COD), Letter of Credit (L/C), Western Union, Paypal, Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
100 Per Year

Delivery Time
3 Week

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Packaging Details
PACKING, WOODEN BOX

Main Export Market(s)
Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia

Main Domestic Market
All India

Certifications
ISO 9001 : 2015

About AUTOMATIC BACKWASH FILTER HOUSING

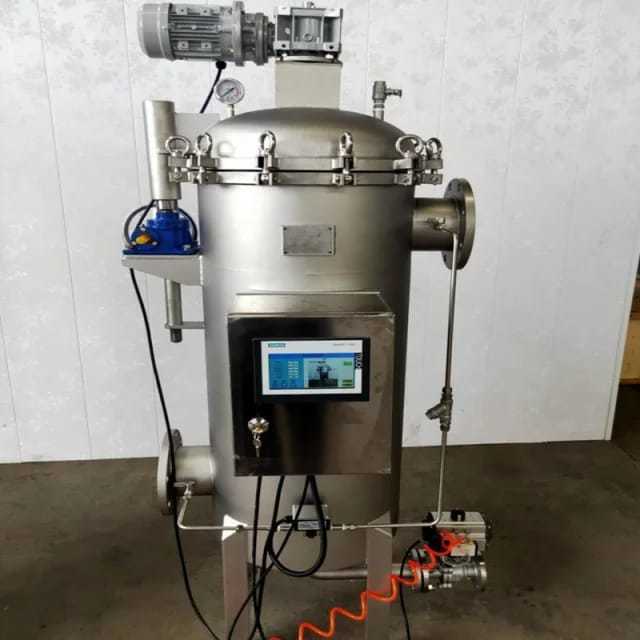

Automatic backwash filter

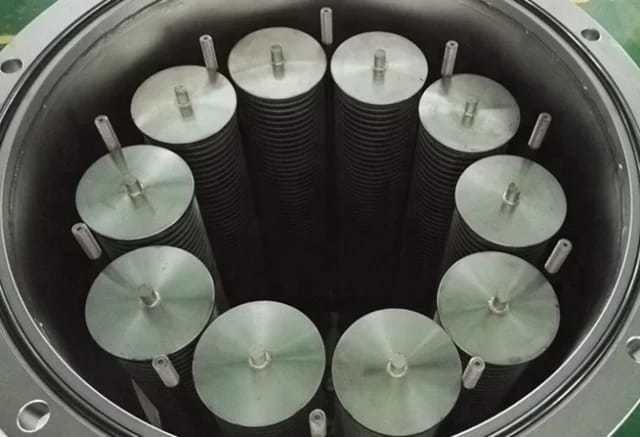

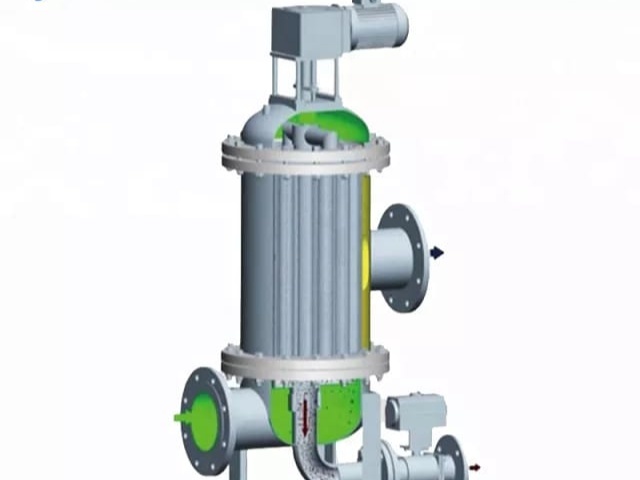

Automatic backwash water filter is made of high-quality carbon steel cylinder, the special structure of the stainless steel wedge filter screen, flow direction valve and sewage drain. In the working status, flow direction valve is on, the water flow from the inlet into the filter, through the filter screen to the outlet . When the filter needs sewage, flow direction valve closed, open the drain valve, water flows through the first half of the mesh filter, part of the water flow into the system from the outlet, the remaining water flow from the backside of the filter into the inside, automatic backwash the filter screen

So that the entire washing process is operating normally, without downtime. Flow direction valve opening mechanism include sub-manual and electric type, when using an electric opening mechanism with clock control electrical control box, it can set the time required to achieve automatic cleaning sewage, then the outfall installed electric ball valves, flow direction valve and sewage electric valve to achieve linkage.

Advanced Filtration Efficiency

Engineered to remove particulates with up to 99% efficiency, the Automatic Backwash Filter Housing addresses the rigorous requirements of industrial water and wastewater processes. The system's precision filter media-wedge wire or multi-layer mesh-accommodate pore sizes from 10 to 100 microns, ensuring optimal contaminant removal without interrupting flow, making it ideal for continuous operations.

User-Friendly Maintenance

Minimize system downtime with tool-free access and a fully automated backwash cleaning mechanism. The housing is PLC-controlled, allowing programmability and consistent performance. Its robust construction allows for easy monitoring, quick cleaning, and reduced manual oversight, supporting low maintenance costs while maximizing operational reliability and longevity.

Built for Demanding Applications

Designed to handle solids up to 200 ppm and withstand pressures up to 10 Bar, this filter housing caters to industries needing durable, corrosion-resistant solutions. Suitable for vertical floor-mounted setups, its flexible inlet and outlet diameters (50 mm to 300 mm) and compliance with ASME and CE standards ensure compatibility and reliability for manufacturers, suppliers, and industrial operations throughout India.

FAQ's of AUTOMATIC BACKWASH FILTER HOUSING:

Q: How does the automatic backwash cleaning mechanism function in this filter housing?

A: The filter uses a motorized, programmable backwash system activated by PLC controls. During operation, contaminants accumulate on the filter media and, once detected or pre-scheduled, the backwash cycle is automatically triggered, reversing flow to dislodge and flush out trapped particles. This ensures efficient, continuous filtration without manual intervention.

Q: What industries and applications are best suited for installing this filter housing?

A: This filter housing is ideal for industrial water filtration, wastewater treatment, and process filtration applications. It is widely used by manufacturers, distributors, exporters, and suppliers in sectors such as chemical processing, power generation, pharmaceuticals, and food processing, thanks to its durable construction and high filtration efficiency.

Q: When should maintenance or backwash settings be adjusted on the filter system?

A: Though designed for low maintenance, it is advisable to check and adjust backwash settings based on your process water's contaminant load (up to 200 ppm) and required filtration efficiency. Routine operational checks or upon noticing reduced flow can prompt manual adjustments to backwash frequency, all managed easily through the PLC interface.

Q: Where can this filter system be installed, and what mounting options are available?

A: This unit is engineered for vertical floor-mounted installations, supporting both flanged and threaded connections. Its robust design, with adaptable inlet and outlet diameters, allows installation in a diverse range of industrial facility layouts across India.

Q: What are the benefits of using a fully automatic, PLC-controlled filter system?

A: The fully automatic, PLC-based operation reduces manual oversight, enhances process reliability, ensures consistent backwash cycles, and maximizes filtration efficiency up to 99%. Users benefit from minimal downtime, low labor costs, and optimized water quality for sensitive or large-scale industrial processes.

Q: How does the filter housing comply with international design and safety standards?

A: The filter housing is designed in compliance with ASME and CE standards, ensuring reliable performance and adherence to stringent safety and quality regulations required for use in regulated industrial applications globally.
