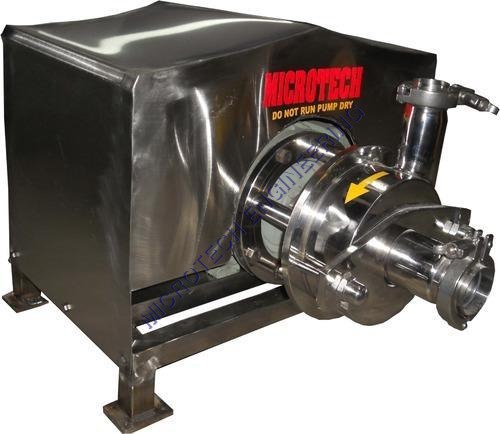

syrup Transfer Pump

Get a Price/Quote

syrup Transfer Pump Specification

Features
Corrosion Resistant, Easy Maintenance

Control System
Manual

Max Suction
6 meters

Inlet/Outlet
25 mm / 25 mm

Flow Rate
60 LPM

Theory
Centrifugal Pump

Head Size
24 meters

Mounting Type
Base Mounted

Speed
2900 RPM

Noise Level
Low Noise Operation

Voltage
220-240 V

Discharge Pressure
2.4 Bar

Caliber
25 mm

Working Temperature
Up to 80C

Frequency
50 Hz

Material
Stainless Steel

Structure
Single-Stage

Power
1 HP

Standard
ISO 9001 Certified

Fuel Type
Electric

Pressure
2.4 Bar

Usage
Syrup Transfer

Application
Food & Beverage Industry

Suction Type
Positive Suction

Seals Type
Mechanical Seal

Priming
Self Priming

Pump Type
Sanitary Pump

Capacity
Up to 60 liters/min

syrup Transfer Pump Trade Information

Payment Terms
Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Cheque

Supply Ability
200 Per Year

Delivery Time
200 Years

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
WOODEN CHARGE

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Africa, Central America, South America, Western Europe, Asia

Main Domestic Market
All India

Certifications
ISO 9001-2008 MSME

About syrup Transfer Pump

SYRUP TRANSFER Pump

Head : 50 meter
Capacity : 140 m3/h
Delivery size : 12mm to 100 mm
Temperature : -10 to 95 degree Celsius
Test pressure : 10 kg/cm2

Standard futures :

Centrifugal single stage
Flange as per din standard
Back pull out design
Open / close impeller
Shaft sealing by single / doable mechanical seal
Sealed grease lubricated , deep grove ball bearing
He pump handle liquid having viscosity up to 1500 centrioles
Also with flame proof motor

Optional futures :

Shaft sealing by gland packing
Bearing lubricating by oil
ANSI drilling on DIN flanges
Trolley mounting arrangement
Various type of connection

Material :

Casing : st. Steel ( cf8 / cf8m )
Shaft : st. Steel ( ss 410 / ss 316 / ss 304 )
Impeller : st. Steel ( ss 410 / ss 316 / ss 304 )
Back Plate: st. Steel ( ss 410 / ss 316 / ss 304 )
Mechanical Seal : TC/TC , SIC/SIC TEFLON/ GFT
MOTOR COVER : SS 304 , SS 316
GASKET : Viton / Nitrile/ Silicon / PTFE

Reliability :

The pump are hydraulically designed for maximum efficiency. Every pump passes through stringent process & quality control plans and is designed to give longer life with consistent performance and trouble free service.

Application :

Dairy industries
Food processing plant
Pharmaceutical industries
Sugar & confectionery
Bottling plants
Distillery
Beverages
Water treatment plants
Colors dies & pigments / paints
Descaling application
Sugar industries
Hot & cold water pumping
Sparkling filter press
Sugar syrup
Chemical processing
Due to content research & development data is subject to change

Hygienic and Food-Safe Design

Engineered for the food and beverage industry, the syrup transfer pump features an FDA-approved stainless steel SS304 open impeller and structure. Its construction minimizes contamination risks, making it ideal for transferring syrups and other consumable liquids safely.

Performance and Portability Combined

With a compact footprint (460 x 210 x 300 mm) and weighing just 22 kg, this pump is highly portable and easy to install in various production environments. It delivers a powerful flow rate of 60 liters per minute, supported by positive suction and a self-priming feature.

Durability and Reliable Operation

Designed with a protection class of IP55 and corrosion-resistant materials, this pump operates dependably in demanding settings. The mechanical seal and single-stage centrifugal theory enhance its longevity, while low noise levels support a more comfortable work environment.

FAQs of syrup Transfer Pump:

Q: How is the syrup transfer pump installed and operated?

A: Installation is straightforward due to its portable, base-mounted design. Simply connect the 25 mm threaded inlet and outlet pipes, ensure the power supply is within 220-240 V at 50 Hz, and use the manual control system to start transferring. Its self-priming and positive suction capabilities support easy setup and operation.

Q: What makes this pump suitable for food and beverage applications?

A: The pump is manufactured from SS304 stainless steel and is FDA-approved for food use, ensuring hygienic syrup transfer. It also complies with ISO 9001 standards for reliable quality and safety in food-grade environments.

Q: When should on-site service support be requested?

A: On-site service support is recommended whenever regular maintenance or technical assistance is needed, especially if performance anomalies or mechanical seal wear occur. This ensures minimal downtime and keeps your process running efficiently.

Q: Where can this pump be used within a facility?

A: Thanks to its compact size and portability, it can be deployed in various locations such as syrup mixing, storage, and bottling areas within food and beverage manufacturing plants across India.

Q: What is the process for cleaning and maintaining the pump?

A: Routine maintenance is simple due to the pumps easy-maintenance design. After use, flush the system with warm water (up to 80C), inspect the mechanical seal and impeller, and check connections for tightness. Periodically clean exterior surfaces to ensure hygiene.

Q: What are the benefits of using this positive suction, self-priming pump for syrup transfer?

A: It offers quick and reliable syrup transfer with minimal product waste, low noise levels, and robust corrosion resistance. The self-priming function speeds up operation, while the mechanical seal ensures leak-free performance.

Q: How does the pumps compliance with industry standards enhance its usability?

A: Being FDA-approved and ISO 9001 certified assures users of food-safety and consistent manufacturing quality. These certifications make it widely accepted in regulated industries and trusted by dealers, exporters, and manufacturers.
