Bottom Entry Mixers

Get a Price/Quote

MOQ : 01 Piece

Bottom Entry Mixers Specification

Accuracy
High mixing precision for consistent results

Noise Level
80 dB

Model No
BEM Series

Cooling System
Optional Jacketed Vessel

Production Capacity
Up to 50,000 L/batch

Power Rating
Variable by model (Typically 2 HP 30 HP)

WorkingSpeed
Variable speed (600 3500 RPM)

Control System
PLC/Manual

Frequency
50/60 Hz

Machine Type
Mixing Machine

Drive
Direct Drive/ Belt Drive

Voltage
220V/380V/415V, 3 Phase

Features
Easy cleaning, low maintenance, robust design, customizable shaft length

Connectivity Options
Can be integrated with process control systems

Operating Temperature
Ambient to 120C (process-dependent)

Frame Type
Stainless Steel Base Frame

Lubricating System
Grease lubricated bearings

Motor Power
As per size/specification (standard options 2 HP 30 HP)

Product Type
Bottom Entry Mixer

Technology
High Shear Mixing

Power Source
Electric

Operating Type
Automatic

Power
1.5 kW 22 kW (customizable)

Pressure
Atmospheric or as per process requirement

Surface Treatment
Polished

Dimension (L*W*H)
Customized as per model specifications

Weight (kg)
Ranges from 40 kg to 500 kg depending on capacity

Color
Metallic Silver / Grey

Usage & Applications
Liquid mixing, homogenizing, emulsifying, solid suspension in chemical, pharmaceutical, food, cosmetic and other industries

Bottom Entry Mixers Trade Information

Minimum Order Quantity
01 Piece

Payment Terms
Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Cheque

Supply Ability
50 Pieces Per Year

Delivery Time
50 Years

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
WOODEN CHARGE

Main Export Market(s)
Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia

Main Domestic Market
All India

Certifications
ISO 9001-2008 MSME

About Bottom Entry Mixers

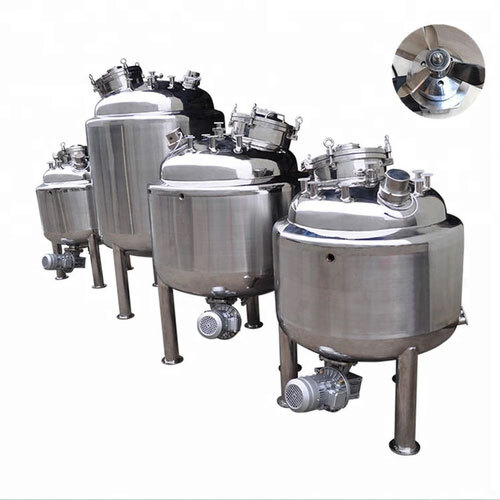

Bottom Entry Mixers

Microtech Engineering Bottom Entry Mixers Are Typically Used In Conjunction With A Stirrer/Scraper Unit. It Emulsifies, Homogenizes, Solubilizes, Suspends, Disperses And Disintegrates Solids. The Bottom Gives High Shear Homogenization While The Stirrer/ Scraper Distribute The Homogenized Output Uniformly Throughout The Vessel. This Is Ideal For High-Viscosity Cosmetic, Pharmaceutical And Food Products. They Can Also Be Used On Low Viscosity Products To Wet Our Powders. Clean-In-Place Design With A Simple, Easy To Clean Construction.

Aeration Free

Self-Pumping
No Bypassing
Interchangeable Warheads
Sanitary Construction
Easy Maintenance
Lower Power Requirements
Reduces Particle Size
Rapidly Dissolves Solids

Accelerates Reactions

Sealing: Single Mechanical Shaft Sealing: A Single Carbon/Ceramic Mechanical Shaft Seal With Viton Elastomers Is Standard. Other Face Materials And Elastomers Are Available As Optional Extras. Double Mechanical Shaft Sealing: These Are Required When Processing Products That Are Abrasive, Sticky Or Viscous Or When The System Is Under Vacuum. Sealant Flushing Systems Can Be Supplied As Optional Extras.

Operating Pressures: All Standard Models Are Designed For Operation On Pressures Not In Excess Of 40 Psig (2.8 Bar). High-Pressure Units Are Available Upon Request.
Materials Of Construction: All Wetted Parts Are In 304/316 304L/316L Stainless Steel. Special Materials On Request. Electropolished Finish Is Available As An Optional Extra.
Cleaning: Clean-In-Place (Cip) Design. Simple, Easy To Clean Construction.
Motor Specifications: Tefc, Washdown Duty And Explosion Proof Motors Are Available As Standard. Inverter Rated, Stainless Steel And Other Motors Are Available As Optional Extras.
Mounting: Stainless Steel Flange Fitting Is Available As Standard. Clamp-On Fitting Is Optional For Smaller Machines.
Operating Pressures: All Standard Models Are Designed For Operation On Pressures Not In Excess Of 40 Psig (2.8 Bar). High-Pressure Units Are Available Upon Request.
Ultra Sanitary: Model Available With Features Including:
Crevice-Free Construction
Sanitary Metal Bellows Shaft Seal
Electro-polished Finish

Versatile Mixing Solutions for Demanding Applications

The BEM Series Bottom Entry Mixers are designed for a wide range of mixing processes with applications in chemical, pharmaceutical, food, and cosmetic sectors. Highly customizable according to your process needs, these mixers offer options like different impeller types, adjustable speeds (6003500 RPM), and scalable capacities, ensuring efficiency and precise mixing in every batch.

Engineered for Safety, Durability and Efficiency

Equipped with emergency stop, overload protection, and low vibration operation (<2 mm/s RMS), these mixers guarantee safe and smooth performance. The premium stainless steel construction and polished surface ensure durability, hygiene, and easy cleaning, while the low maintenance design provides long-term reliability and cost-effectiveness for your operation.

Comprehensive Support, Adaptability and Integration

The BEM Series supports seamless installation via vertical bottom entry, and can be tailored with direct or belt drive. Available with onsite commissioning, user training, and integration options for process control systems, these mixers adapt effortlessly to your production line, boosting productivity and ensuring operator confidence.

FAQs of Bottom Entry Mixers:

Q: How do I choose the right impeller type for my mixing process?

A: Selection depends on your process requirements: dissolver impellers are ideal for breaking down solids, turbine impellers offer strong axial flow for homogenization, and propeller impellers are suitable for gentle blending. Our experts can assist in identifying the best option based on your medium and application.

Q: What batch size range can these bottom entry mixers handle?

A: The BEM Series is designed to efficiently process batches from 50 liters up to 10,000 liters, and can be further customized for specific capacity needs.

Q: When is onsite commissioning and training provided?

A: Onsite commissioning and operator training are provided at the time of installation to ensure your team is fully equipped for safe and efficient operation. This support is available to all customers across India.

Q: Where can these mixers be installed and integrated?

A: Designed for versatility, the vertical bottom entry configuration allows installation in new or existing vessels. They can be integrated with process control systems for automated production lines in chemical, food, pharmaceutical, and cosmetics facilities.

Q: What is the maintenance requirement for these mixers?

A: These mixers are engineered for low maintenance, featuring grease-lubricated bearings, robust seals, and easy-to-clean surfaces. Routine checks and minimal servicing are usually sufficient to keep them running smoothly.

Q: How does the mixer ensure operator safety during use?

A: Safety is prioritized through emergency stop buttons, overload protection, and low vibration designs. The standard noise level is 80 dB, contributing to a safer and more comfortable workplace.

Q: What are the benefits of using a high shear bottom entry mixer?

A: High shear bottom entry mixers deliver rapid, uniform mixing and ensure optimal dispersion, emulsification, and particle reduction. This results in high batch-to-batch consistency, faster process times, and improved product quality.
